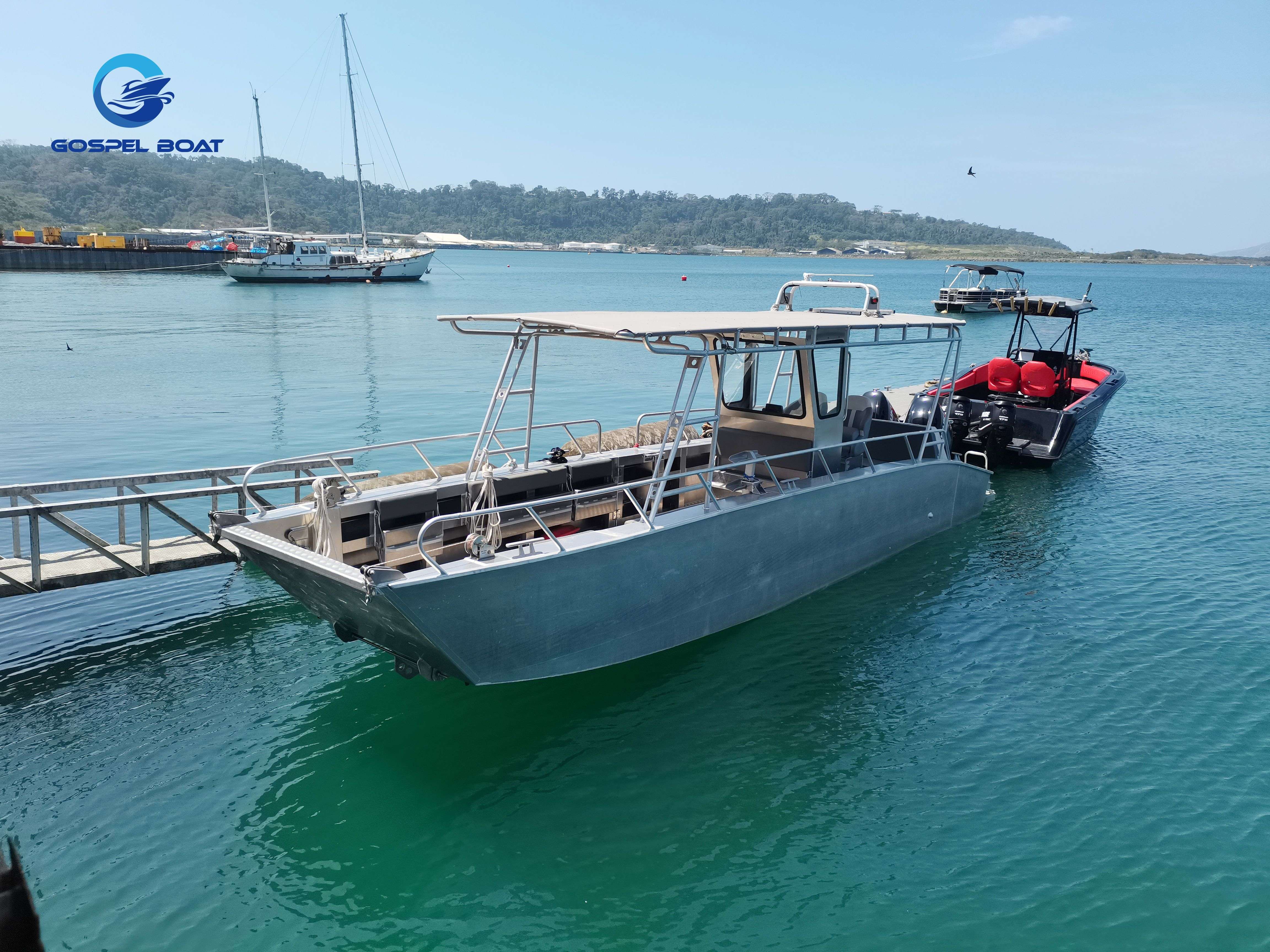

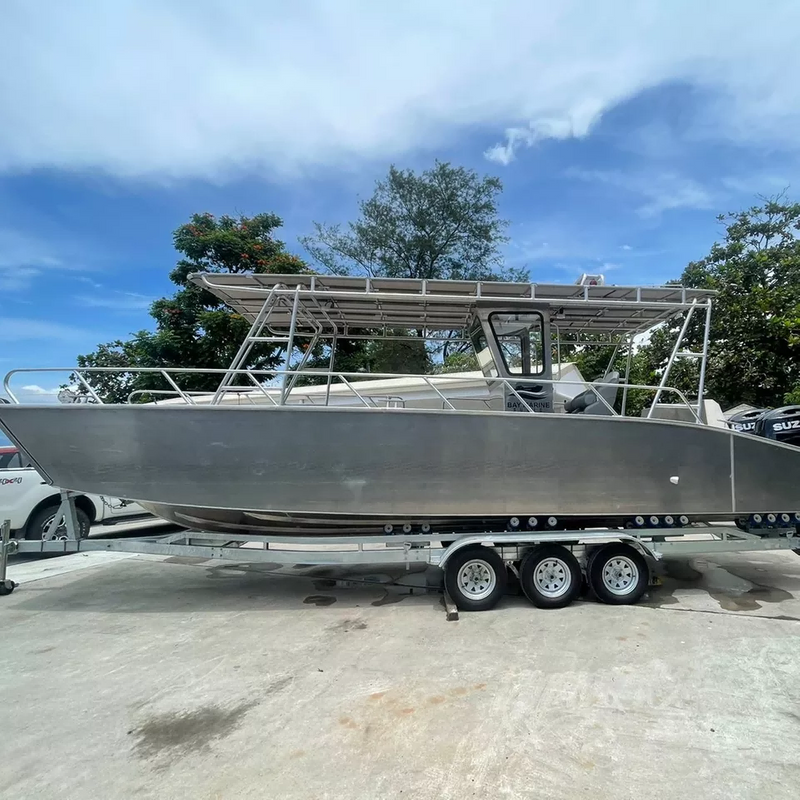

Aluminum Landing Craft 9m*2.45m Boat Cargo Transport Trailerable Work Boat

Place of Origin ：Shandong, China
Hull Material： Aluminum
Year Built： 2024
Length (m) ：9m
Model Number ：LC-900
Packaging and delivery
Selling Units: Single item
Single package size: 900X250X200 cm
Single gross weight: 2000.000 kg

Availability:

Quantity:



Inquire

9m landing craft with cabin aluminum boat 9m Console Landing Craft Cargo Boat

Product Description

Production Description

SPECIFICATIONS	9m*2.45m Landing Craft Center Console
Length Maximum(m)	9
Beam (m)	2.45
Depth(m)	1.42
Draught(m)	0.35
Transom Shaft	25"
Bottom(mm)	6

Manufacturing Technique

1.All of our fishing & working boat are made of Marine-grade aluminum 5083-h116 with China Ship Classification society ( CCS )

2.Welding Specification :

1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place.
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders.

4) The bottom is double bottom system and constructed on the longitudinal system of framing.

5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm .

3.The Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system.
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with heavy duty fuel hoses.
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe .
